CloudTalents Application on K8s

 included in DevOps
   1544 words   8 minutes

In the previous post, we used docker-compose to build and manage our multi-container application. Today, I talk about orchestrating those containers using Kubernetes.

fter building the docker image in the previous article, it’s time to orchestrate containers using K8s.

Follow along by cloning the below repo.

Source code repo

Info
K8s manifest files are available at cloudtalents-startup-v1

Docker Hub

Note
The docker image is tagged and pushed to the docker hub.

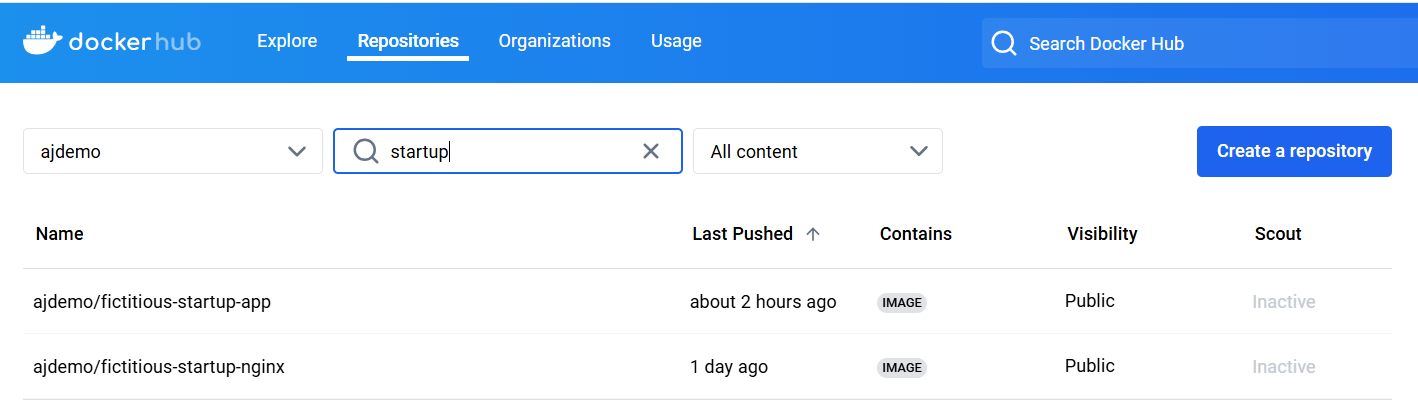

Figure1: Docker Hub

Config Maps and Secrets

When we ran the Django(app) container locally, we passed the env file into the docker run to inject configuration variables into the runtime environment. On Kubernetes, configuration variables can be injected using ConfigMaps and Secrets.

ConfigMaps should be used to store non-confidential configuration information, such as app settings, and Secrets should be used for sensitive information, such as API keys and database credentials.

Note
We’ve extracted the non-sensitive configuration from the .env.app file and pasted it into a ConfigMap manifest. The ConfigMap object is called app-config.
1
2
3
4
5
6
7

apiVersion: v1
kind: ConfigMap
metadata:
  name: app-config
data:
    SQL_ENGINE: "django.db.backends.postgresql"
    DATABASE: "postgres"

Creating Postgres Secret

We’ll use the env file from the docker section, removing variables inserted into the ConfigMap.

Create a file db-secrets and load the values as follows.

1
2
3

POSTGRES_USER=<FILL_HERE>
POSTGRES_PASSWORD=<FILL_HERE>
POSTGRES_DB=mvp
Info
Now, create the secret using the following command
1

kubectl create secret generic postgres-secret  --from-env-file=db-secrets

Rolling out the Postgres DB using a StatefulSet

The first step is to deploy Postgres as a stateful set with a headless service. A stateful set is a Kubernetes resource that manages deploying and scaling a set of Pods with persistent identities and storage. A headless service is a Kubernetes service that does not have a cluster IP address. Instead, it provides DNS records for the pods in the stateful set.

Tip

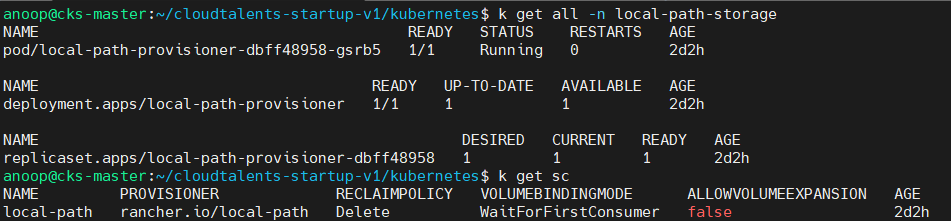

A stateful set requires dynamic volume provisioning, which is met by installing rancher local path provisioner.

Figure2: local-path provisioner

The following YAML file defines a headless service named db that exposes port 5432 and selects Pods with the label app: postgres. It also defines a stateful set named “postgres” that uses the headless service, has one replica, and creates Pods with the label app: postgres. Each Pod has a container named Postgres that runs the image postgres:16

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49

apiVersion: v1
kind: Service
metadata:
  name: db
  labels:
    app: postgres
spec:
  ports:
    - port: 5432
  selector:
    app: postgres
  clusterIP: None
---
apiVersion: apps/v1
kind: StatefulSet
metadata:
  name: postgres
spec:
  replicas: 1
  selector:
    matchLabels:
      app: postgres
  template:
    metadata:
      labels:
        app: postgres
    spec:
      containers:
        - name: db
          image: 'postgres:16'
          imagePullPolicy: IfNotPresent
          ports:
            - containerPort: 5432
          envFrom:
            - secretRef:
                name: postgres-secret
          volumeMounts:
            - mountPath: /var/lib/postgresql/data
              name: postgresdata
  volumeClaimTemplates:
      - metadata:
          name: postgresdata
        spec:
          accessModes:
            - ReadWriteOnce
          storageClassName: "local-path"
          resources:
            requests:
              storage: 512Mi

Then, you can apply the YAML file by running

1

kubectl apply -f postgres-sts.yaml
Info

The command above will create the headless service and the stateful set in your cluster. You can verify them by running the following commands:

1
2
3
4

k get pv
k get pvc -l app=postgres
k get svc -l app=postgres
k get po -l app=postgres

Output - DB

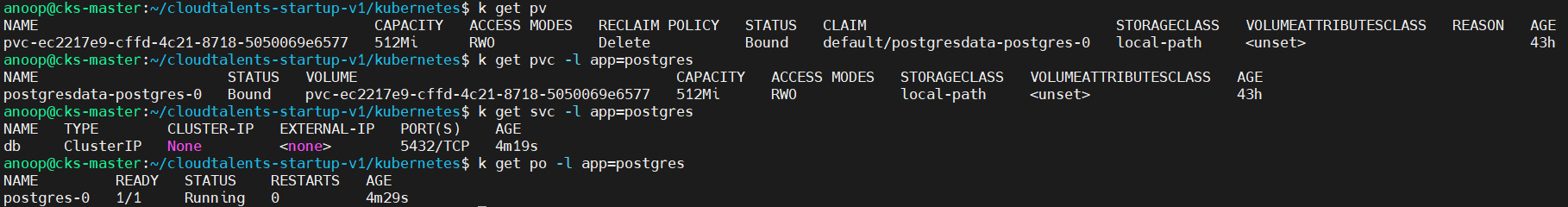

Figure3: statefulset-postgress

Note

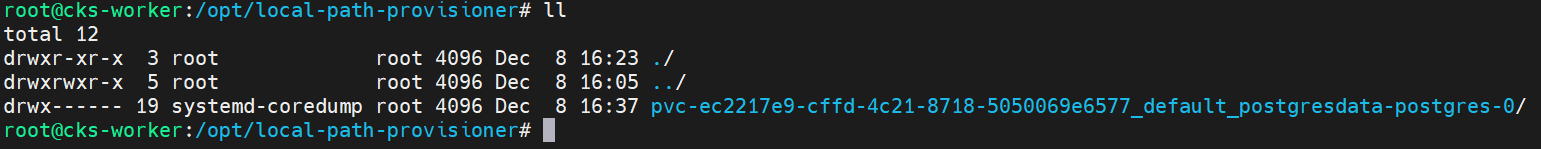

The local-path provisioner mounts a directory /opt/local-path-provisioner on the node to which the db pod gets assigned.

Figure4: directory mount

Creating App Secret

Create a file django-secrets and load the values as follows.

1
2
3
4
5
6

SECRET_KEY=<FILL_HERE>
SQL_DATABASE=mvp
SQL_USER=<FILL_HERE>
SQL_PASSWORD=<FILL_HERE>
SQL_HOST=db
SQL_PORT=5432
Info
Now, create the secret using the following command
1

kubectl create secret generic app-secret  --from-env-file=django-secrets

Rolling out the Django app using a Deployment

In this step, we will create a Deployment for your Django app. A Kubernetes Deployment is a controller that can manage stateless applications in your cluster. A controller is a control loop that regulates workloads by scaling them up or down. Controllers also restart and clear out failed containers.

Here, we define a Kubernetes Deployment called app and label it with the key-value pair name: app. We specify that we’d like to run only one replica of the Pod defined below the template field.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62

apiVersion: v1
kind: Service
metadata:
  creationTimestamp: null
  labels:
    app: app
  name: app
spec:
  ports:
  - name: "8000"
    port: 8000
    protocol: TCP
    targetPort: 8000
  selector:
    name: app
  type: ClusterIP
status:
  loadBalancer: {}

---
apiVersion: apps/v1
kind: Deployment
metadata:
  creationTimestamp: null
  labels:
    app: django
  name: app
spec:
  replicas: 1
  selector:
    matchLabels:
      name: app
  strategy: {}
  template:
    metadata:
      creationTimestamp: null
      labels:
        name: app
    spec:
      containers:
      - image: ajdemo/cloudtalents-startup-app:v1
        imagePullPolicy: Always
        name: app
        command: ["/opt/app/web/entrypoint.sh"]
        args: ["gunicorn" , "--bind","0.0.0.0:8000", "cloudtalents.wsgi:application"]
        envFrom:
          - secretRef:
              name: app-secret
          - configMapRef:
              name: app-config
        ports:
          - containerPort: 8000
             name: gunicorn
        volumeMounts:
          - mountPath: /opt/app/web/media/
            name: media-volume
      volumes:
          - name: media-volume
            hostPath:
                path: /media/images # directory location on host
                type: DirectoryOrCreate # this field is optional
status: {}

Using envFrom with secretRef and configMapRef, we specify that all the data from the app-secret Secret and app-config ConfigMap should be injected into the containers as environment variables. The ConfigMap and Secret keys become the environment variable names.

Note
Finally, we expose containerPort 8000 and name it gunicorn.

Create the Deployment using k apply -f app-deploy.yaml

Info

Verify the resources using the following commands.

1
2
3

k get deploy
k get po -l name=app
k get svc -l app=app

Output - APP

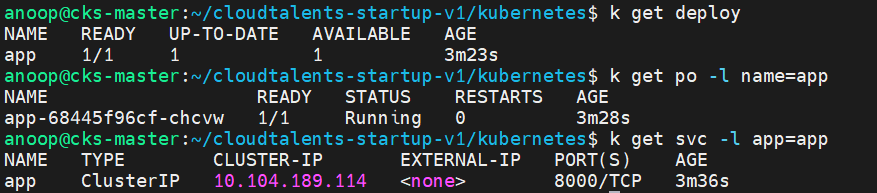

Figure5: deployment-app

Now execute the Django migration using the command below

1

k exec -it <app-pod-name> -- python3 manage.py migrate

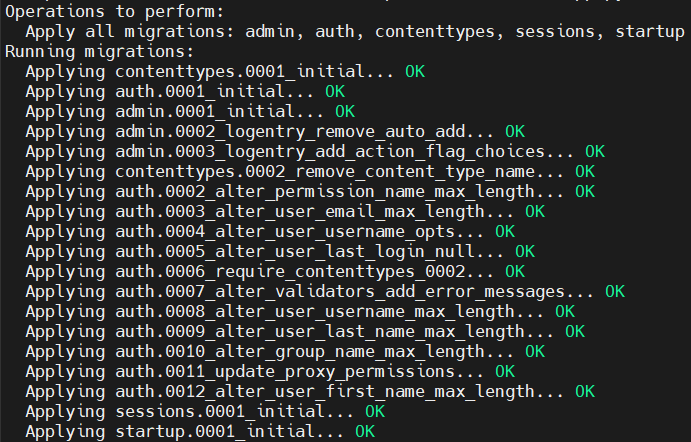

Migrations are Django’s way of propagating changes you make to your models (adding a field, deleting a model, etc.) into your database schema. Successful execution of the command returns the below output.

Figure6: deployment-app

Rolling out the NGINX using a Deployment

In this step, we will create a Deployment for your nginx. It first creates a ConfigMap and uses a custom nginx.conf file. It is mounted as a volume inside /etc/nginx/conf.d directory of Pod.

A nodePort service exposes the Pod to the outside world.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86

apiVersion: v1
kind: ConfigMap
metadata:
  name: nginx-conf
data:
  nginx.conf: |
    upstream cloudtalents {
      server app:8000;
    }

    server {

    listen 80;

    location / {
        proxy_pass http://cloudtalents;
        proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
        proxy_set_header Host $host;
        proxy_redirect off;
      }

    location /media/ {
        alias /opt/app/web/media/;
      }
    }
---
apiVersion: apps/v1
kind: Deployment
metadata:
  creationTimestamp: null
  labels:
    app: nginx
  name: nginx
spec:
  replicas: 1
  selector:
    matchLabels:
      app: nginx
  strategy: {}
  template:
    metadata:
      creationTimestamp: null
      labels:
        app: nginx
    spec:
      containers:
      - image: nginx:1.25
        name: nginx
        volumeMounts:
          - mountPath: /opt/app/web/media/
            name: media-volume
          - name: nginx-conf
            mountPath: /etc/nginx/conf.d
      volumes:
        - name: nginx-conf
          configMap:
            name: nginx-conf
            items:
              - key: nginx.conf
                path: nginx.conf
        - name: media-volume
          hostPath:
            path: /media/images
            type: DirectoryOrCreate

status: {}
---
apiVersion: v1
kind: Service
metadata:
  creationTimestamp: null
  labels:
    app: nginx
  name: nginx
spec:
  ports:
  - name: web
    nodePort: 31680
    port: 80
    protocol: TCP
    targetPort: 80
  selector:
    app: nginx
  type: NodePort
status:
  loadBalancer: {}

Create the deployment using the following command

1

k apply -f nginx-deploy.yaml

Verify the resources using the following command

1

k get all -l app=nginx

Output - NGINX

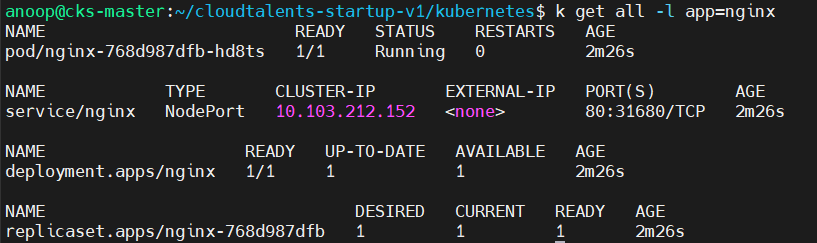

Figure7: deployment-nginx

Access the application through a browser and upload an image.

You can use either the k8s master or worker IP address and port 31680 to access the app.

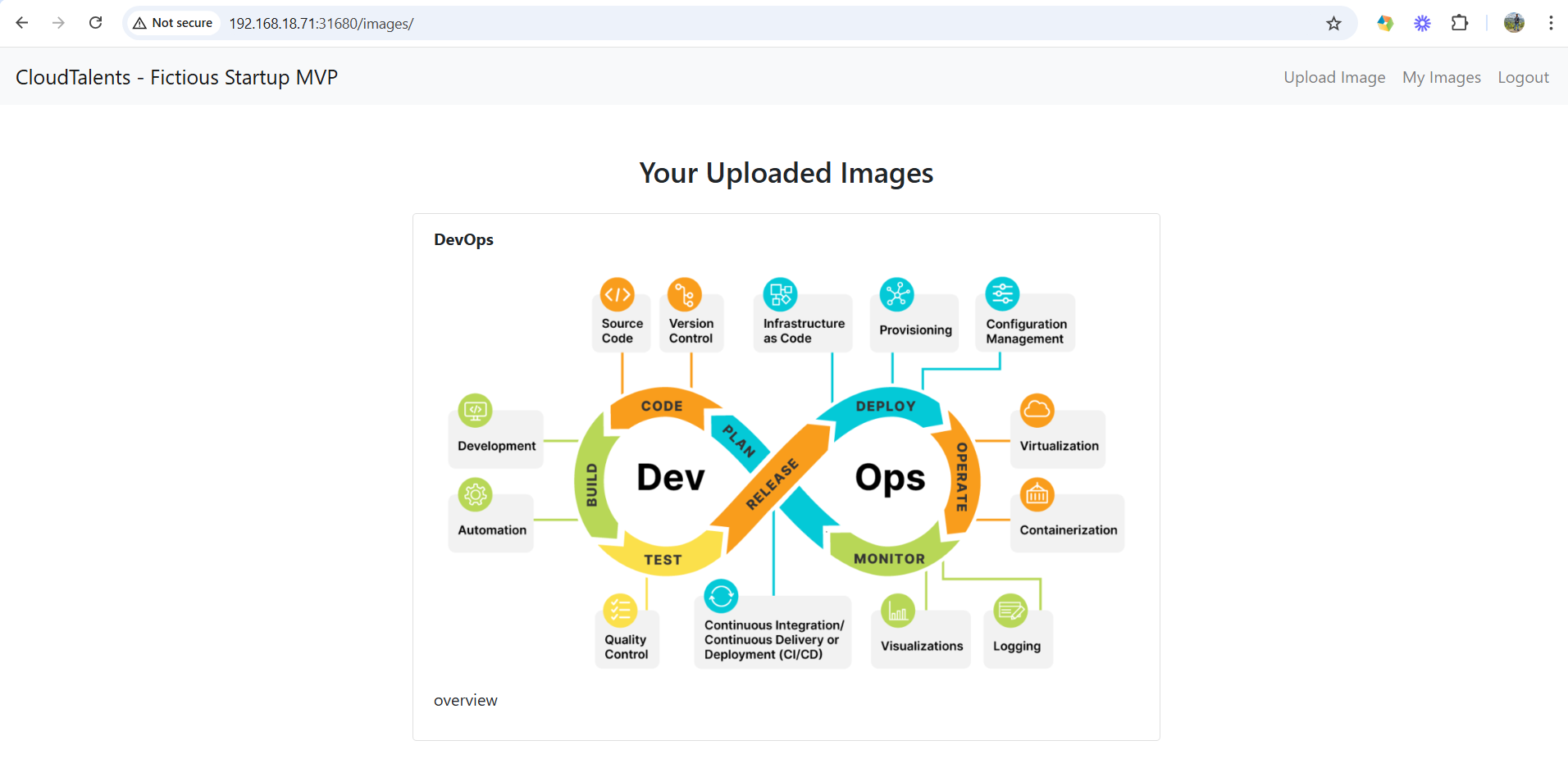

Figure8: application

Tip
The setup can be improved by deploying an ingress controller to leverage L7 routing based on the URI.

I have deployed the NGINX ingress controller by following the steps from the official documentation.

Create an ingress resource using the YAML file below

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19

apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: app-ingress
  annotations:
    nginx.ingress.kubernetes.io/rewrite-target: /
spec:
  ingressClassName: nginx
  rules:
  - host: "cloudtalentstartup.com"
    http:
      paths:
      - pathType: Prefix
        path: "/"
        backend:
          service:
            name: nginx
            port:
              number: 80
Note
An Ingress resource will be created and will look like the one below

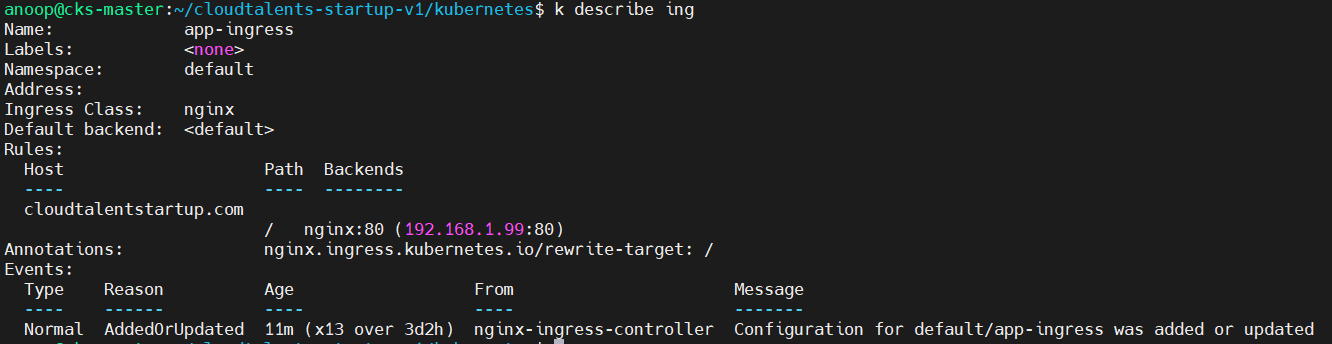

Figure9: Ingress resource

Tip

One final modification is needed: change the node port for the nginx-ingress service to 31780

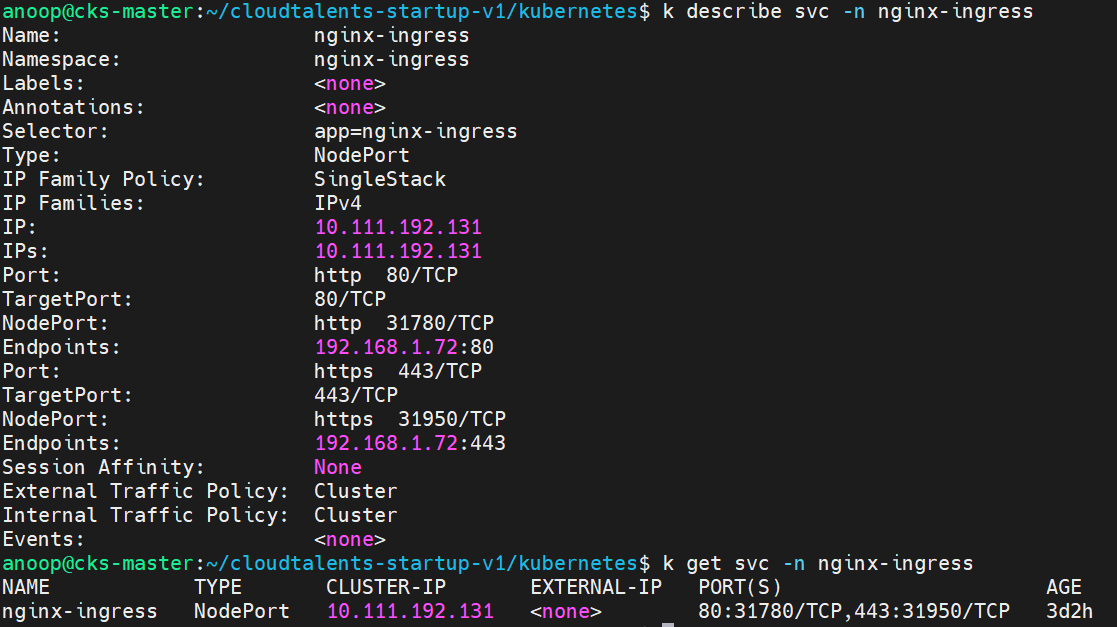

Figure10: ingress nodeport-svc

Rollout

Now access the app using the FQDN http://cloudtalentstartup.com:31780

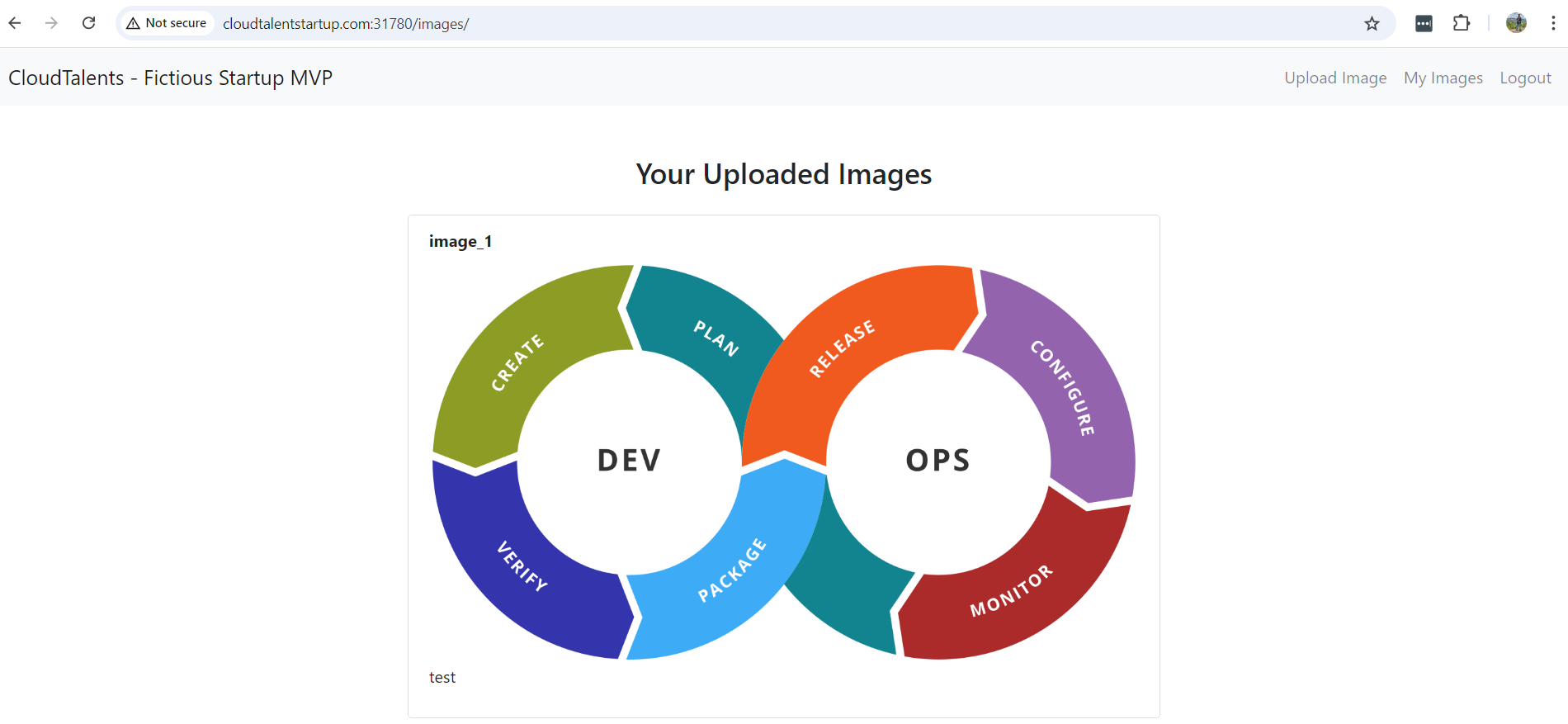

Figure11: website-final-version

Note
Now the application can be scaled up seamlessly to meet the high volume of traffic
