OIDC Integration between GitHub and AWS
If you think security is paramount, stop using hard-coded cloud provider credentials in your CI/CD pipeline. In this blog, I discuss the steps to integrate GitHub as an OIDC provider in AWS.
Does your GitHub Actions CI/CD pipeline have hard-coded, long-lived cloud-provider credentials for communicating with various cloud services?
Using hardcoded secrets requires creating credentials in the cloud provider and then duplicating them in GitHub as a secret.
On the other hand, OpenID Connect allows your workflows to exchange short-lived tokens directly from your cloud provider.
How it works

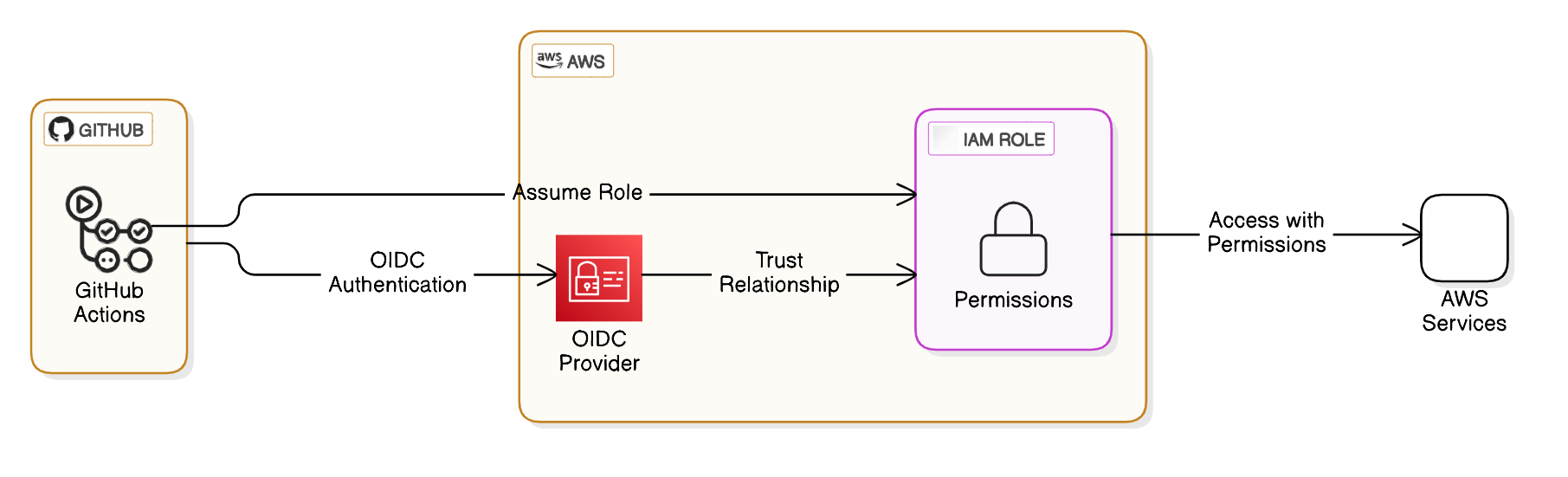

Figure1: OIDC Integration between GitHub and AWS
Action Items
-
Configure GitHub as an OIDC provider in AWS

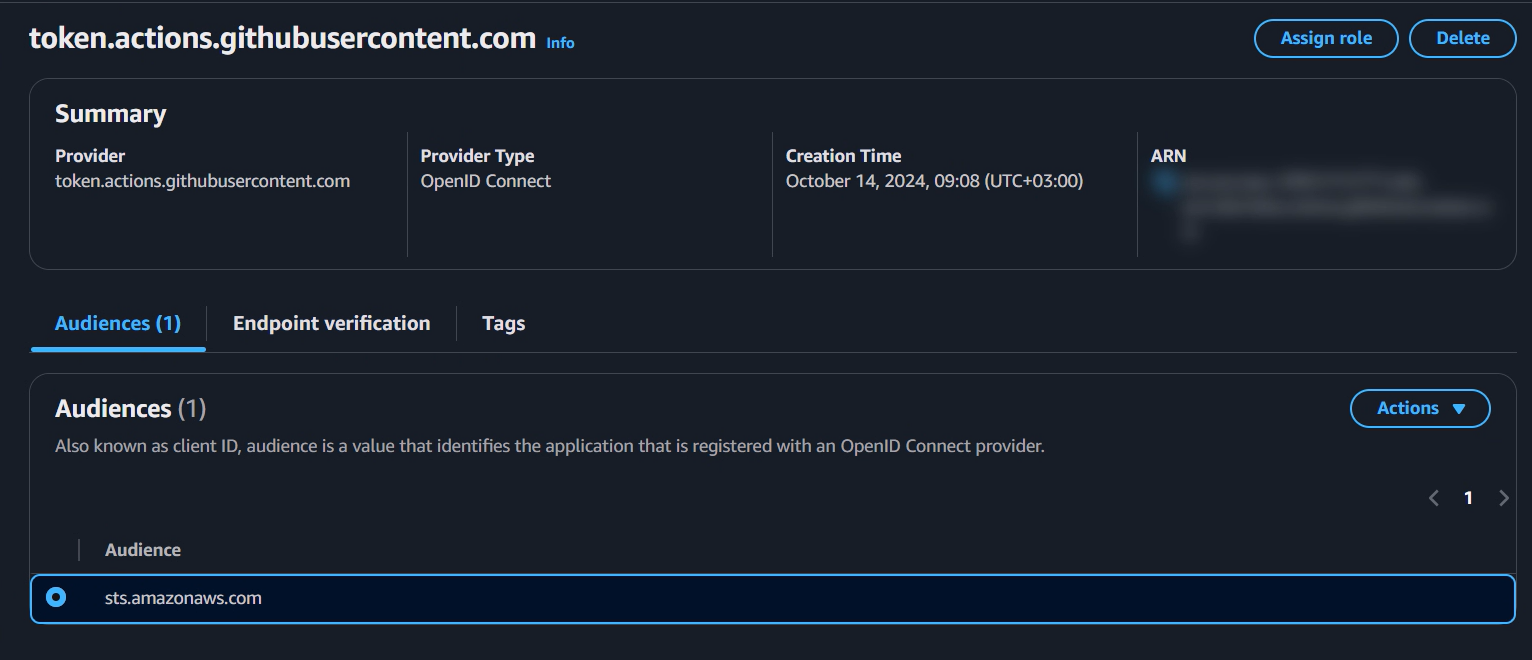

Figure2: OIDC Provider
-
Create an IAM policy; here, I give an example of uploading objects to my s3 bucket.

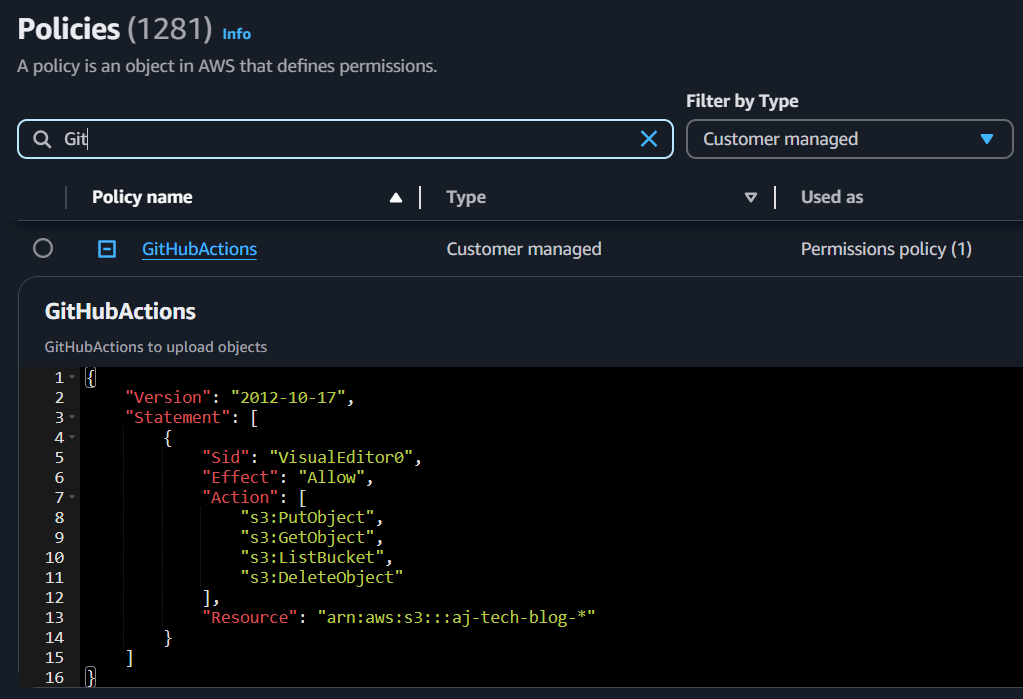

Figure3: IAM Policy
-
Create an IAM Role of type web Identity. To create a trust policy, you must provide details like GitHub organization, repository(optional) and branch(optional).
Figure4: IAM Role
-
Copy the Role ARN and create it as a GitHub secret.
Once you've done this, use this official action from the GitHub marketplace: https://github.com/marketplace/actions/configure-aws-credentials-action-for-github-actions. This action uses tokens to authenticate to AWS and access resources.
OIDC Flow

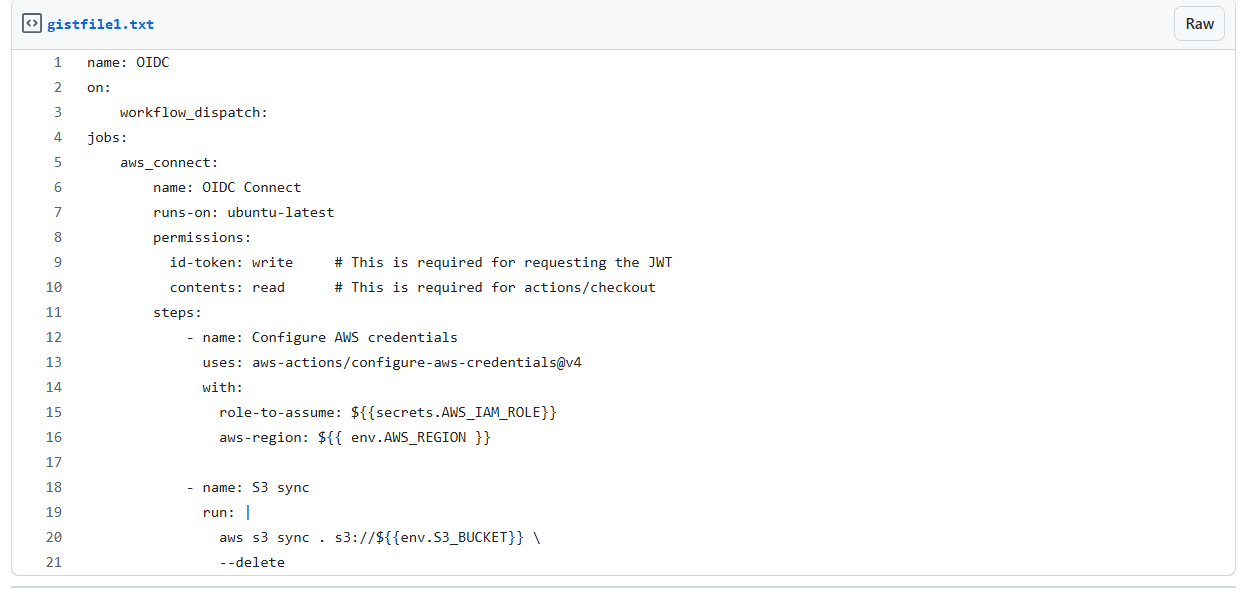

Last, every time a job runs, GitHub’s OIDC Provider auto-generates an OIDC token. The job requires a permissions setting with id-token: write to allow GitHub’s OIDC provider to create a JSON Web Token for every run.

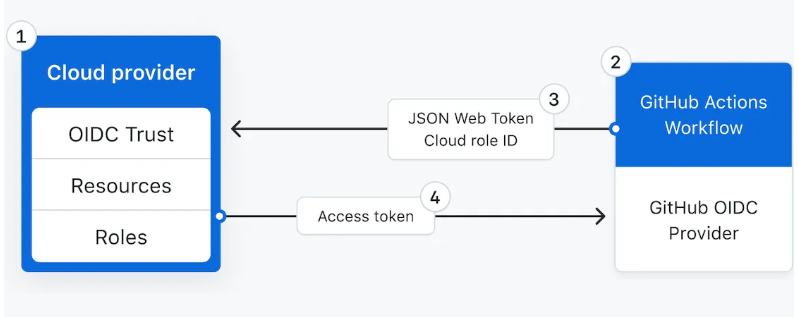

Figure5: OIDC Flow
-
In your cloud provider, create an OIDC trust between your cloud role and your GitHub workflow(s) that need access to the cloud.
-
Every time your job runs, GitHub’s OIDC Provider auto-generates an OIDC token. This token contains multiple claims to establish a security-hardened and verifiable identity about the specific workflow that is trying to authenticate.
-
You could include a step or action in your job to request this token from GitHub’s OIDC provider, and present it to the cloud provider.
-
Once the cloud provider successfully validates the claims presented in the token, it then provides a short-lived cloud access token that is available only for the duration of the job.
